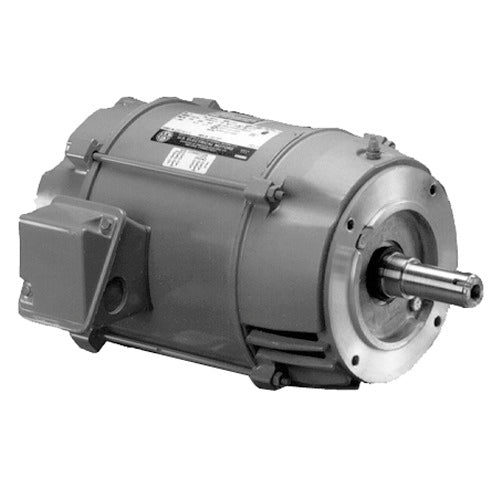

U.S. Motors DJ32P2DU Close Coupled Pump Motor Three Phase ODP Horizontal - Footless Motor

Product Description

The U.S. Motors DJ32P2DU is a close coupled pump motor designed for three-phase applications. It features a nominal power output of one and a half horsepower. The motor operates at a speed of one thousand eight hundred revolutions per minute.

• Enclosure type: Open Drip Proof (ODP)
• Voltage rating: 208-230/460 and 190/380
• Frame size: 145JM

Product Highlights

This motor is built for robust applications and is suitable for centrifugal pumps where direct mounting is required. Its ODP design helps protect the motor in clean environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Power: 1.5 hp

Technical Specifications

• Full Load Efficiency: 86.5%
• Enclosure Designation: ODP - Open Drip Proof
• Full Load Amps: 4.4-4.2/2.1
• Poles: 4
• RPM: 1800
• Full Load RPM: 1430, 1750
• Phase: Three Phase
• Frame: 145JM
• Insulation: F
• Motor Application: Pump Motor
• Hz: 50/60
• Duty: Continuous Duty
• Mounting: Horizontal - Footless
• Voltage Rating: 208-230/460 & 190/380
• Weight: 35.0 LB
• UPC: 786382116477
