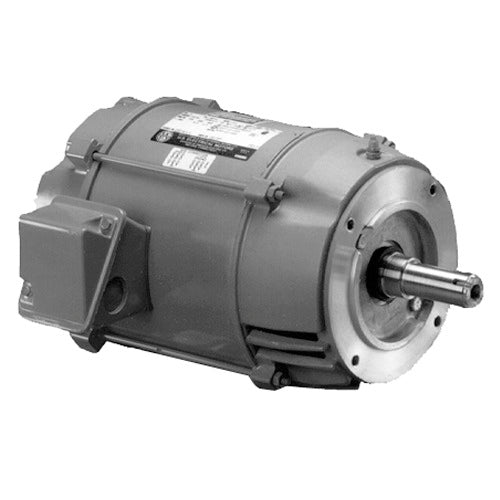

U.S. Motors DJ32E1DU Close Coupled Pump Motor Three Phase ODP Horizontal - Footless Motor

Product Description

The U.S. Motors DJ32E1DU is a three-phase close coupled pump motor designed for various pumping applications. With a horsepower rating of one and a half, this motor operates at a speed of three thousand six hundred revolutions per minute. It is built for horizontal footless mounting and features an open drip proof (ODP) enclosure suitable for indoor environments.

• Wiring Voltage: 208-230/460 & 190/380
• Full Load Efficiency: 82.5%
• Frame Size: 143JM

Product Highlights

This motor is ideal for consistent and efficient performance in pump applications. It operates at 50/60 Hz and is rated for continuous duty, making it suitable for many industrial and commercial uses.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: DJ32E1DU

Technical Specifications

• Full Load Efficiency: 82.5%
• Phase: Three Phase
• Voltage Rating: 208-230/460 & 190/380
• RPM: 3600
• Full Load Amps: 4.3-4/2
• Mounting: Horizontal - Footless
• Frame: 143JM
• Hz: 50/60
• Insulation: F
• Poles: 2
• C Dimension: 15.8 in
• Service Factor: 1.15
• Weight: 41.0 LB
• EAN or UPC: 786382093433
