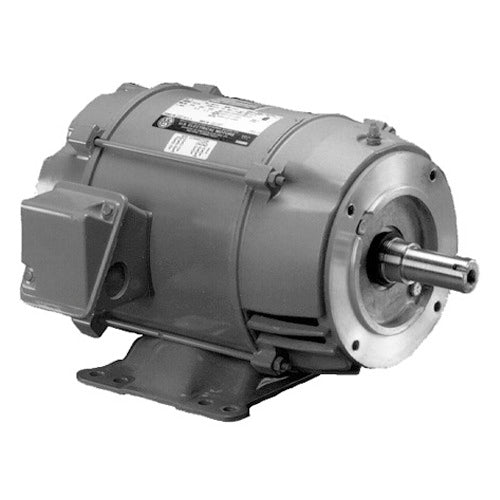

U.S. Motors DJ30P1DM Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors DJ30P1DM is a reliable close coupled pump motor suitable for applications requiring consistent performance. This model operates on three-phase power and delivers thirty horsepower at three thousand six hundred revolutions per minute. It features a horizontal footed mounting design and is built with an open drip-proof enclosure for efficient operation.

• Three-phase motor with 30 horsepower
• Designed for pump applications
• Operational efficiency rating of 92.4%

Product Highlights

This motor is well-suited for continuous duty applications, providing a service factor of 1.15. It is compatible with multiple voltage ratings including 208-230/460 and 190/380, making it a versatile choice for different setups.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: DJ30P1DM

Technical Specifications

• C Dimension: 25.7 inches
• Service Factor: 1.15
• Insulation: F
• Phase: Three Phase
• Full Load Efficiency: 92.4%
• Hz: 50/60 Hz
• Poles: 2
• RPM: 3600 rpm
• Full Load Amps: 79-68/34
• Voltage Rating: 208-230/460 & 190/380
• Mounting: Horizontal - Footed
• Duty: Continuous Duty
• Motor Application: Pump Motor
• Enclosure: ODP
• Frame: 284JM
• Weight: 225.0 LB
• EAN or UPC: 786382114824
