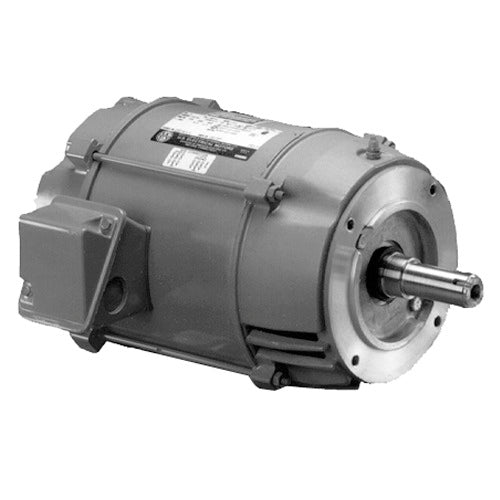

U.S. Motors DJ1P2DU Close Coupled Pump Motor Three Phase ODP Horizontal - Footless Motor

Product Description

The U.S. Motors DJ1P2DU is a close coupled pump motor designed for three-phase applications. This motor operates at one horsepower and features a horizontal footless mount. It is built for continuous duty and is suitable for various pump applications.

• Three-phase motor.
• 1 horsepower and 1800 RPM.
• Open drip-proof (ODP) enclosure.

Product Highlights

This motor is ideal for tasks requiring reliable operation in challenging environments. The footless mounting makes it versatile for integration into existing pump setups without taking up much space.

Product Information

Standard Information

• Part Number: DJ1P2DU
• Brand: U.S. Motors

Technical Specifications

• Duty: Continuous Duty
• Insulation: F
• Voltage Rating: 208-230/460 & 190/380
• Service Factor: 1.15
• Motor Application: Pump Motor
• Full Load Amps: 3.2-3.1/1.6
• Poles: 4
• RPM: 1800 RPM
• Phase: Three Phase
• Full Load Efficiency: 85.5%
• C Dimension: 15.6 inches
• Frame: 143JM
• Enclosure: ODP
• Mounting: Horizontal - Footless
• Weight: 30.0 LB
