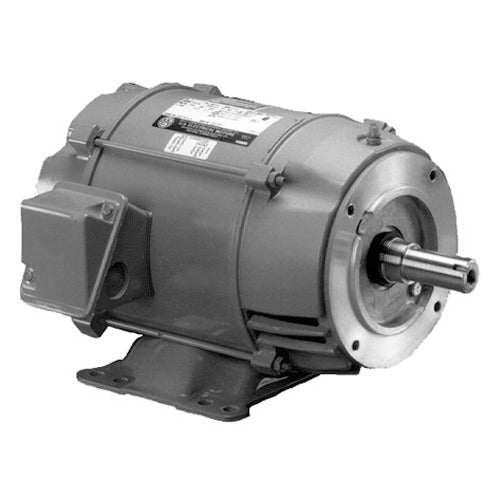

U.S. Motors DJ1P2DP Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors DJ1P2DP is a three-phase, close coupled pump motor designed for efficient operation in various applications. This motor operates at one horsepower and runs at an 1800 RPM speed, making it suitable for continuous duty requirements. It features an open drip proof (ODP) enclosure that allows for good ventilation while protecting components from moisture.

• Effective for pump motor applications
• Voltage ratings of 208-230/460 and 190/380
• Horizontal footed mounting design for easy installation

Product Highlights

This motor is engineered for durability and efficiency in demanding conditions. It has a robust 143JP frame and meets the requirements for continuous operation. The design reduces overheating and enhances the lifespan of the motor.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: DJ1P2DP

Technical Specifications

• Phase: Three Phase
• Insulation: F
• Enclosure Designation: ODP - Open Drip Proof
• Full Load RPM: 1800 RPM
• Voltage Rating: 208-230/460 & 190/380
• Full Load Efficiency: 85.5%
• Full Load Amps: 3.2-3.1/1.6
• Poles: 4
• Mounting: Horizontal - Footed
• Frame: 143JP
• Motor Application: Pump Motor
• Duty: Continuous Duty
• Weight: 30.0 LB
• EAN or UPC: 786382115081
