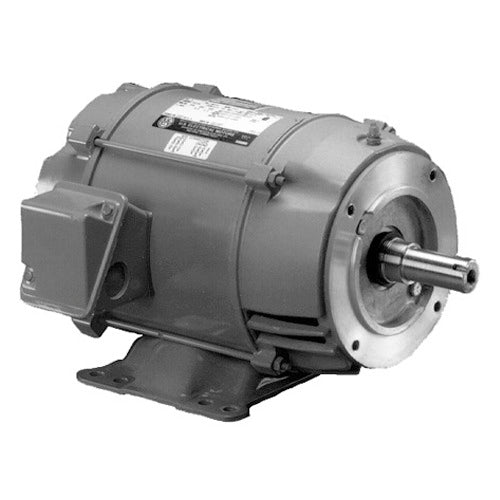

U.S. Motors DJ15P1DP Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors DJ15P1DP is a close coupled pump motor designed for three-phase applications. This motor offers a power rating of fifteen horsepower and operates at a speed of three thousand six hundred RPM. Its ODP enclosure allows for ventilation while protecting against moisture, making it suitable for various environments.

• Rated for two poles with a continuous duty cycle.
• Voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts.
• Constructed with a robust 215JP frame.

Product Highlights

This model features high efficiency and reliability in demanding tasks, optimizing performance in fluid movement.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: DJ15P1DP

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• RPM: 3600 rpm
• Full Load RPM: 2830 and 3490 rpm
• Insulation Class: F
• Frame: 215JP
• Service Factor: 1.15
• Poles: 2
• Mounting: Horizontal - Footed
• Duty: Continuous Duty
• Motor Application: Pump Motor
• Full Load Efficiency: 90.2%
• Phase: Three Phase
• Full Load Amps: 40-36/18
• Weight: 105.0 LB
• Voltage Rating: 208-230/460 & 190/380
• Hz: 50/60 Hz
