US MOTORS DJ10P2DU CLOSE COUPLED PUMP MOTORS
US MOTORS DJ10P2DU CLOSE COUPLED PUMP MOTORS

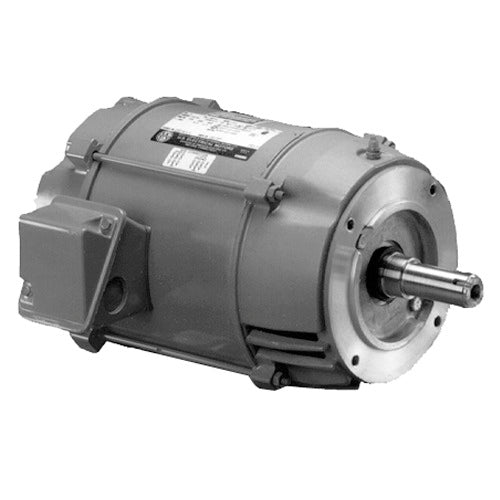

U.S. Motors DJ10P2DU Close Coupled Pump Motor Three Phase ODP Horizontal

US MOTORS
Brand: US MOTORS
SKU: DJ10P2DU
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,393.59
$1,393.59
LTL Delivery

This product weighs 105 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors DJ10P2DU is a three-phase close coupled pump motor designed for efficient operation in various pump applications. With a power rating of 10 horsepower, this unit operates at 1800 revolutions per minute (RPM). It is suitable for both 50 Hz and 60 Hz frequency applications and offers a wide voltage rating of 208-230/460 and 190/380 volts.

  • Continuous duty operation
  • Open drip-proof enclosure design
  • Horizontal footless mounting configuration

Product Highlights

This pump motor is ideal for industrial and commercial uses where reliable pump performance is required. Its robust design and high efficiency make it a preferred choice for HVAC systems, water supply systems, and other pumping tasks.

Product Information

Standard Information

  • Brand: U.S. Motors
  • Part Number: DJ10P2DU

Technical Specifications

  • Horsepower: 10 HP
  • Frame: 215JM
  • RPM: 1800
  • Voltage Rating: 208-230/460 & 190/380
  • Full Load Amps: 26.3-23.8/11.9
  • Efficiency: 91.7 %
  • Insulation Class: F
  • Service Factor: 1.15
  • Weight: 105.0 LB
