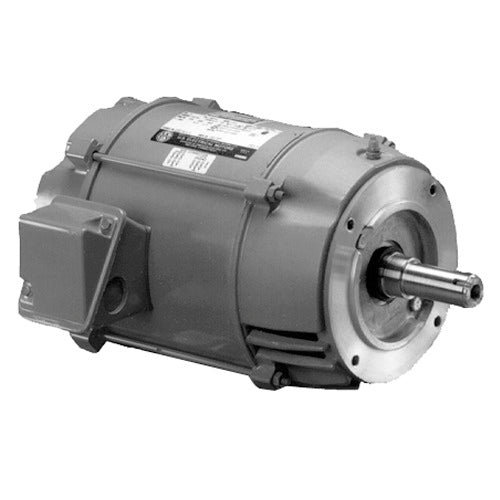

U.S. Motors DJ10P2DJ Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

U.S. Motors DJ10P2DJ Close Coupled Pump Motor Three Phase ODP Horizontal - Footed Motor

Brand: US MOTORS
SKU: DJ10P2DJ
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$994.38
$994.38
LTL Delivery

This product weighs 105 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors DJ10P2DJ is a close coupled pump motor designed for various pumping applications. Featuring a three-phase operation and ODP enclosure, this motor ensures reliable performance in demanding environments.

  • 10 horsepower capacity
  • Rated for 1800 RPM
  • Voltage options of 208-230/460 and 190/380

Product Highlights

This motor is suitable for continuous duty applications and is mounted horizontally, making it ideal for interfacing with pumps.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: DJ10P2DJ

Technical Specifications

  • Motor Application: Pump Motor
  • Enclosure: ODP
  • Voltage Rating: 208-230/460 & 190/380
  • Hz: 50/60
  • Duty: Continuous Duty
  • RPM: 1800
  • Weight: 105.0 LB
  • Frame Size: 215TCZ
  • Full Load Amps: 26.3-23.8/11.9
  • Full Load Efficiency: 91.7%
