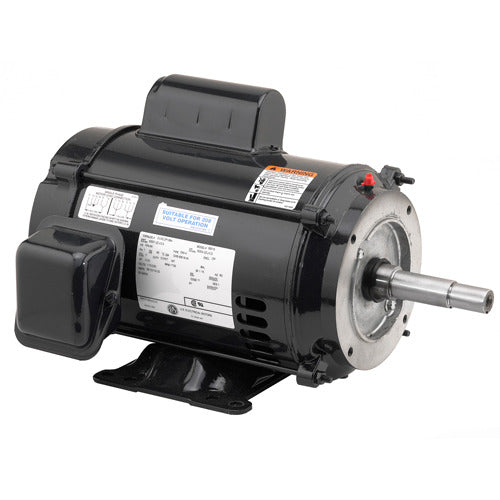

U.S. Motors DJ10C1K21P Close Coupled Pump Motor Single Phase ODP Motor

Product Description

The U.S. Motors DJ10C1K21P is a close coupled pump motor designed for single phase applications. With a power of ten horsepower and a rated speed of three thousand six hundred revolutions per minute, this motor is suitable for various pump operations. Built to operate at sixty hertz, it operates efficiently at a voltage rating of two hundred thirty volts. The open drip proof (ODP) enclosure provides protection in dry locations, making it an ideal choice for commercial and industrial settings.

• Power: 10 hp
• Speed: 3600 rpm
• Frame Size: 215JP

Product Highlights

This motor is built for continuous duty and features a design that supports horizontal mounting. It ensures reliable performance with an effective service factor of 1.15.

Product Information

Standard Information

• Brand: U.S. Motors
• Motor Application: Pump Motor

Technical Specifications

• Frame: 215, 215JP
• Insulation: F
• Service Factor: 1.15
• Full Load RPM: 3500 rpm
• Full Load Amps: 40
• Frame Material: Rolled Steel
• Drive End Bearing: SAB
• Open End Bearing: SAB
• Voltage Rating: 230
• HP: 10
• Phase: Single Phase
• Poles: 2
• Enclosure: ODP, Drip Proof
• Duty: Continuous Duty
• Weight: 173 LB
• EAN or UPC: 786382022280
