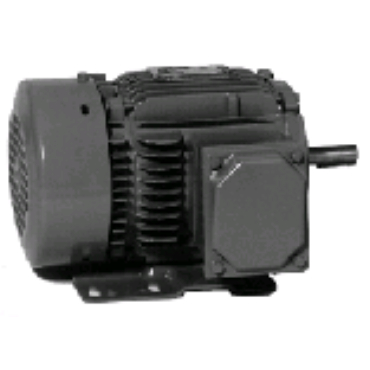

U.S. Motors D50V1BS Inverter Vector Duty Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D50V1BS is an inverter vector duty motor designed for general purpose applications. This three-phase motor operates efficiently in various industrial settings and includes an open drip proof (ODP) enclosure to withstand various operational conditions. It features a horsepower rating of fifty and can effectively handle different voltage inputs.

• General purpose inverter vector duty motor
• Three-phase operation with a voltage rating of 230/460
• ODP enclosure for added durability

Product Highlights

The D50V1BS motor is suitable for HVAC applications, manufacturing processes, and other situations requiring reliable and continuous power. Its design allows for a high level of efficiency and adaptability to varying operational demands.

Product Information

Standard Information

• Motor Application: General Purpose, Inverter Vector Duty
• Poles: 2

Technical Specifications

• Efficiency Group: Epact Efficient
• Duty: Continuous Duty
• Hz: 60
• Frame Size: 324TS
• Full Load Amps: 117/59
• Weight: 385.0 LB
• Voltage Rating: 230/460
• Mounting: Horizontal Mount, Horizontal - Footed
• Enclosure Designation: ODP - Open Drip Proof
