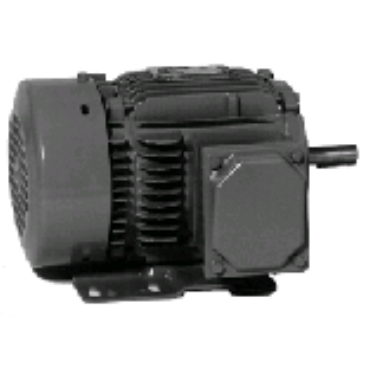

U.S. Motors D3V2B Inverter Vector Duty Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D3V2B is an inverter vector duty three-phase motor designed for various applications. It features a robust open drip-proof (ODP) enclosure suitable for horizontal footed mounting. This motor is ideal for general-purpose use, specifically in inverter-based systems, providing reliable performance.

• Applications: General purpose, inverter vector duty
• Efficiency: 86.5% Epact nominal full load efficiency
• Voltage: 230/460 volts

Product Highlights

The D3V2B motor supports a continuous duty cycle and can operate effectively within the specified voltage range. It uses rolled steel construction for durability and has a unique design to cater to various operational demands.

Product Information

Standard Information

• Manufacturer: U.S. Motors
• MPN: D3V2B

Technical Specifications

• Frame Size: 182T
• Insulation Class: F
• Poles: 4
• Weight: 50.0 LB
• Full Load Amps: 7.6/3.8
• Motor Application: General Purpose, Inverter Vector Duty
• Efficiency Group: Epact Efficient
• Open End Bearing: 6205-2Z-J/C3
• Drive End Bearing: 6309-2Z-J/C3
• Enclosure Designation: ODP - Open Drip Proof
• Hz: 60 Hz
• Voltage Rating: 230/460
