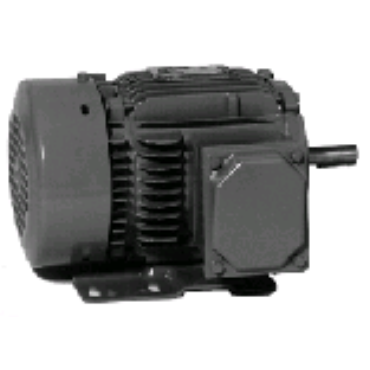

U.S. Motors D3V1B General Purpose AC Motor 230/460V

Product Description

The U.S. Motors D3V1B is a three-phase AC motor designed for general purpose applications. It operates at a voltage of two hundred thirty to four hundred sixty, suitable for various industrial uses. This motor features an efficiency rating of eighty-four percent, making it efficient for continuous operation.

• Type: Di, Three Phase motor.
• Mounting: Horizontal Mount suitable for various installations.
• Full Load Amps: 3.7, designed for reliable performance.

Product Highlights

The D3V1B motor is ideal for applications that require a robust and reliable power source. Its epact efficiency ensures lower energy consumption, making it a cost-effective solution for your motor needs.

Product Information

Standard Information

• Frame: 145
• Enclosure: ODP - Open Drip Proof

Technical Specifications

• Poles: 2
• Design: B
• Weight: 40.0 LB
• Efficiency Group: Epact Efficient
• Drive End Bearing: 6207-2Z-J/C3
• Open End Bearing: 6203-2Z-J/C3
• Frequency: 60 Hz
• Motor Application: General Purpose
