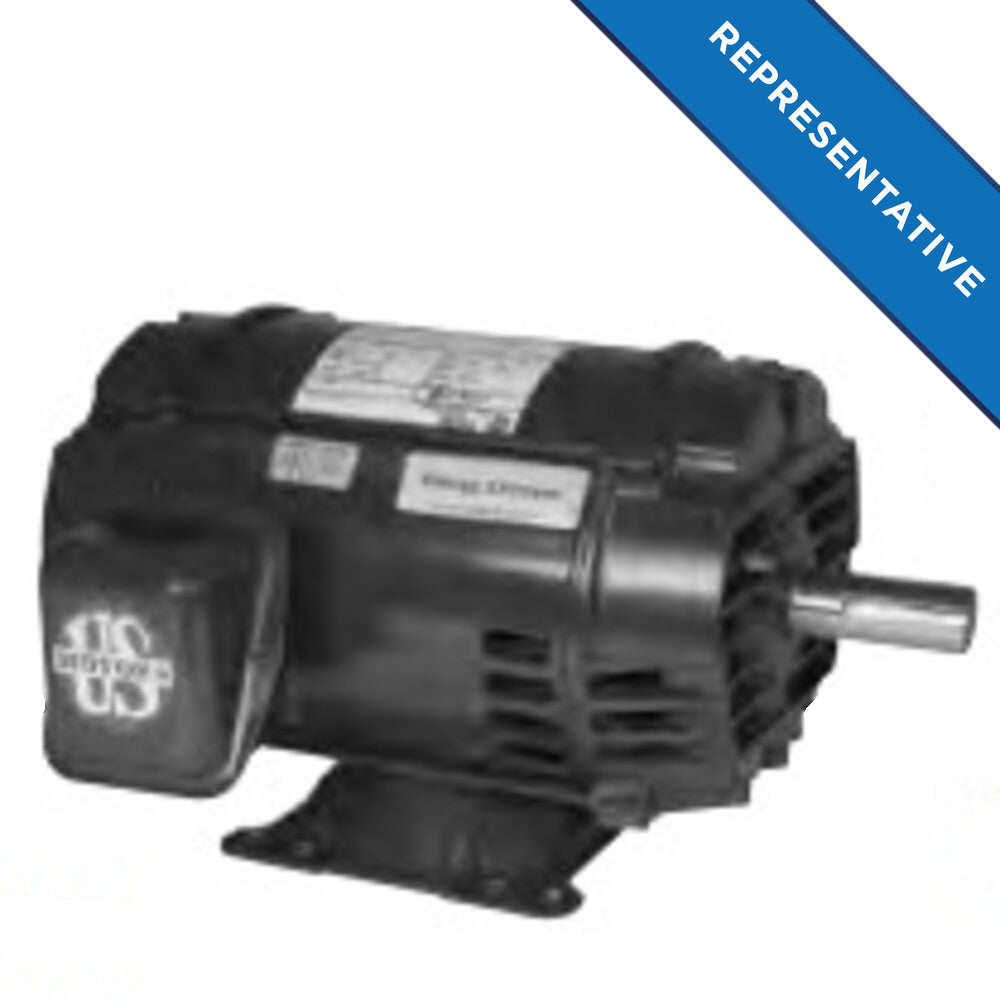

U.S. Motors D34P2AH9 General Purpose Three Phase ODP Resilient Motor

Product Description

The U.S. Motors D34P2AH9 is a reliable three-phase motor designed for general-purpose applications. With a power rating of three-fourths horsepower and a speed of 1800 RPM, it effectively supports various industrial tasks. This motor operates on a voltage range of 208-230/460 volts and is ideal for powering pumps, fans, and other machinery. The resilient mounting provides durability in demanding environments.

• Open Drip Proof (ODP) enclosure suitable for industrial use
• Four poles for optimal performance
• Continuous duty rating for reliable operation

Product Highlights

This motor features a robust design that withstands harsh conditions, making it an excellent choice for industrial settings. The ODP enclosure protects against moisture and dust, enhancing the motor's longevity.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D34P2AH9

Technical Specifications

• Phase: Three Phase
• Insulation Class: B
• Mounting Type: Resilient
• Poles: 4
• Duty Cycle: Continuous Duty
• Full Load Efficiency: 82.2%
• Full Load Amps: 2.8-2.7/1.4
• Enclosure Designation: Open Drip Proof
• Frame Size: 56H
• Weight: 23.0 lbs
• Voltage Rating: 208-230/460
• RPM: 1800
• Hz: 50/60
