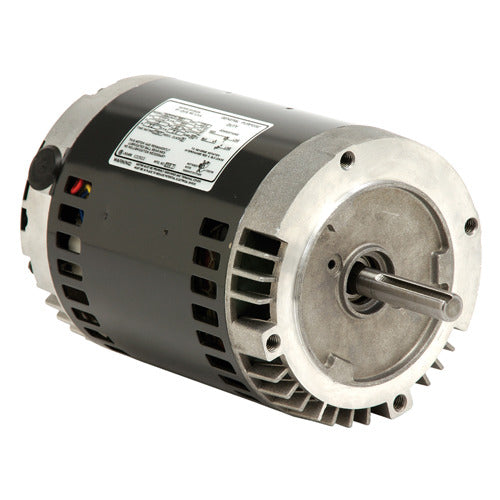

U.S. Motors D34CPA2PCR General Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors D34CPA2PCR is a general purpose single-phase ODP C-face motor designed for reliable performance in various applications. With a power output of three-fourths horsepower and an operating speed of 1800 RPM, this motor is suitable for HVAC and industrial applications. Built for continuous duty, it operates efficiently across a range of voltage ratings from one hundred fifteen to two hundred thirty volts.

• 3/4 horsepower capacity
• Suitable for continuous duty operation
• Easy C-face mounting

Product Highlights

This motor features an open drip-proof enclosure and utilizes automatic reset thermal protection for safety and reliability under load.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D34CPA2PCR

Technical Specifications

• Voltage Rating: 115/230
• Phase: Single Phase
• RPM: 1800
• C Dimension: 12.8 in
• Poles: 4
• Full Load Amps: 7/3.5
• Efficiency: 81.8%
• Insulation Class: B
