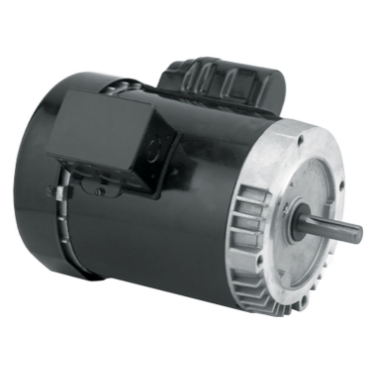

U.S. Motors D34CA1JCR General Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors D34CA1JCR is a general purpose single phase ODP C-face motor. This reliable motor is designed for various applications, delivering efficient performance in a range of settings.

• Power rating of three-fourths horsepower
• Operates at a full load speed of three thousand six hundred RPM
• Available in an open drip-proof design

Product Highlights

This motor features a continuous duty cycle and is suitable for HVAC systems, pumps, and other machinery.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 102091855

Technical Specifications

• Horsepower: 3/4
• Hz: 60 Hz
• RPM: 3600 RPM
• Duty: Continuous Duty
• Frame: 56C
• Phase: Single Phase
• Poles: 2
• C Dimension: 11.3 inches
• Insulation: B
• Full Load Efficiency: 67.8%
• Weight: 23.0 lbs
• Voltage Rating: 115/208-230
• Enclosure: ODP
• Thermal Protection: Automatic Reset
• Service Factor: 1.25
• Full Load Amps: 10.4/5.3-5.2
• Enclosure Designation: ODP - Open Drip Proof
