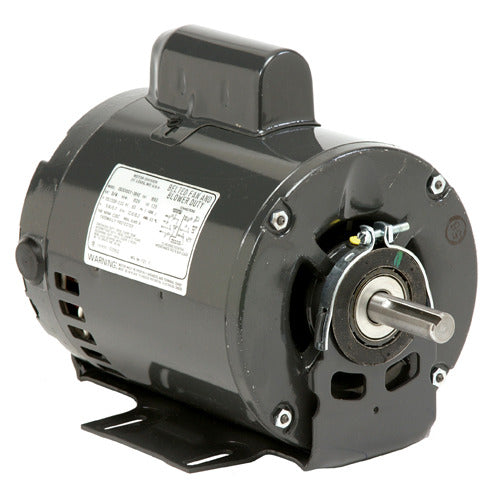

U.S. Motors D32CPA1PH9 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D32CPA1PH9 is a general purpose single phase ODP cradle motor designed for various applications. With a power output of one and one-half horsepower, this motor works efficiently at a speed of three thousand six hundred RPM. It is suitable for both residential and commercial uses, providing reliable performance while maintaining ease of installation due to its cradle mount feature.

• Single Phase with a voltage rating of one hundred fifteen/two hundred thirty volts.
• Open Drip Proof (ODP) enclosure ensures protection against moisture and dust.
• Automatic thermal protection for safe operation under continuous duty.

Product Highlights

This motor is ideal for HVAC systems, pumps, and various machinery requiring robust power. Its design supports efficient heat dissipation, enhancing durability and performance.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 112855281

Technical Specifications

• HP: 1.5
• Efficiency: 81.5%
• Poles: 2
• Full Load Amps: 13.3/6.7
• Frame Size: 56H
• Weight: 31 LB
• Duty: Continuous
• Insulation Class: B
