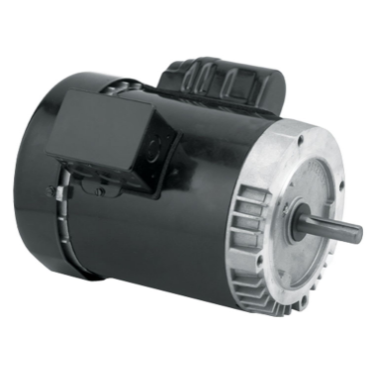

U.S. Motors D32C1JHC General Purpose Single Phase ODP C-Face/Base Motor

Product Description

The U.S. Motors D32C1JHC is a general purpose motor designed for single phase applications. It delivers a power output of one and a half horsepower at three thousand six hundred RPM. This motor operates on a voltage rating of one hundred fifteen to two hundred thirty volts and features an open drip proof (ODP) enclosure, suitable for various installation environments.

• Powerful one and a half horsepower output.
• Operates at three thousand six hundred RPM.
• Suitable for various general-purpose applications.

Product Highlights

This motor is designed to perform efficiently in continuous duty applications, making it ideal for HVAC systems, fans, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D32C1JHC

Technical Specifications

• Frame: 56HC
• Enclosure Designation: ODP - Open Drip Proof
• Duty: Continuous Duty
• RPM: 3600 rpm
• Phase: Single Phase
• Full Load Efficiency: 70 %
• Voltage Rating: 115/208-230
• Full Load Amps: 18.6/9.8-9.3
