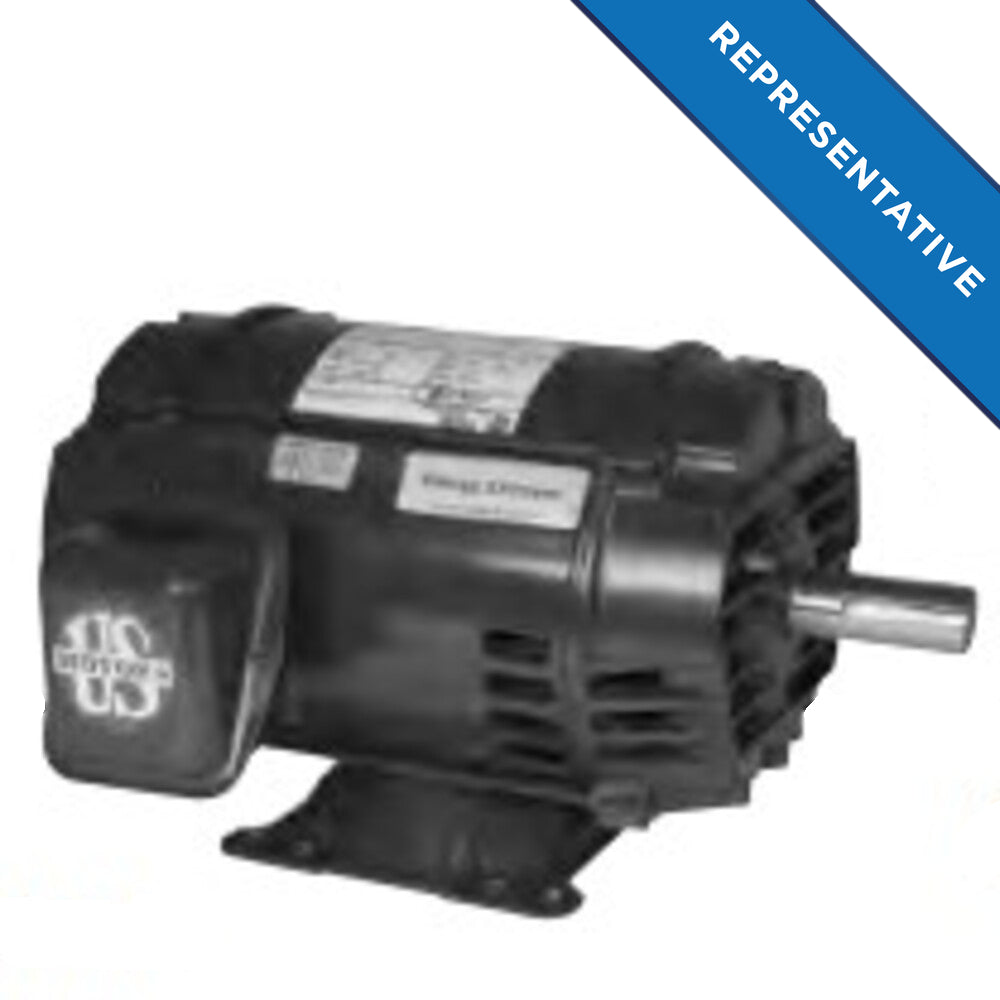

U.S. Motors D30P3D General Purpose Three Phase ODP Horizontal - Footed Motor
U.S. Motors D30P3D General Purpose Three Phase ODP Horizontal - Footed Motor

U.S. Motors D30P3D General Purpose Three Phase ODP Horizontal - Footed Motor

Brand: US MOTORS
SKU: D30P3D
Availability: Out Of Stock
$2,863.40
$2,863.40
LTL Delivery

This product weighs 415 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors D30P3D is a three-phase general purpose motor designed for various applications. This motor features an open drip proof (ODP) enclosure, suitable for environments where moisture or dust may be present. It has a power rating of thirty horsepower and operates at a speed of twelve hundred RPM, making it effective for numerous industrial tasks.

  • Three-phase motor with thirty horsepower
  • Open drip proof enclosure for protection
  • Operates at a speed of twelve hundred RPM

Product Highlights

This motor is excellent for applications requiring a reliable power source with a high efficiency rating. The D30P3D is designed for continuous duty use, ensuring longevity and durability.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: D30P3D

Technical Specifications

  • Voltage Rating: 208-230/460 & 190/380
  • Full Load Efficiency: 93.6%
  • Service Factor: 1.15
  • Poles: 6
  • Weight: 415 LB
  • Frame: 326T
  • C Dimension: 27.2 inches
  • Amperage: 78-70/35
