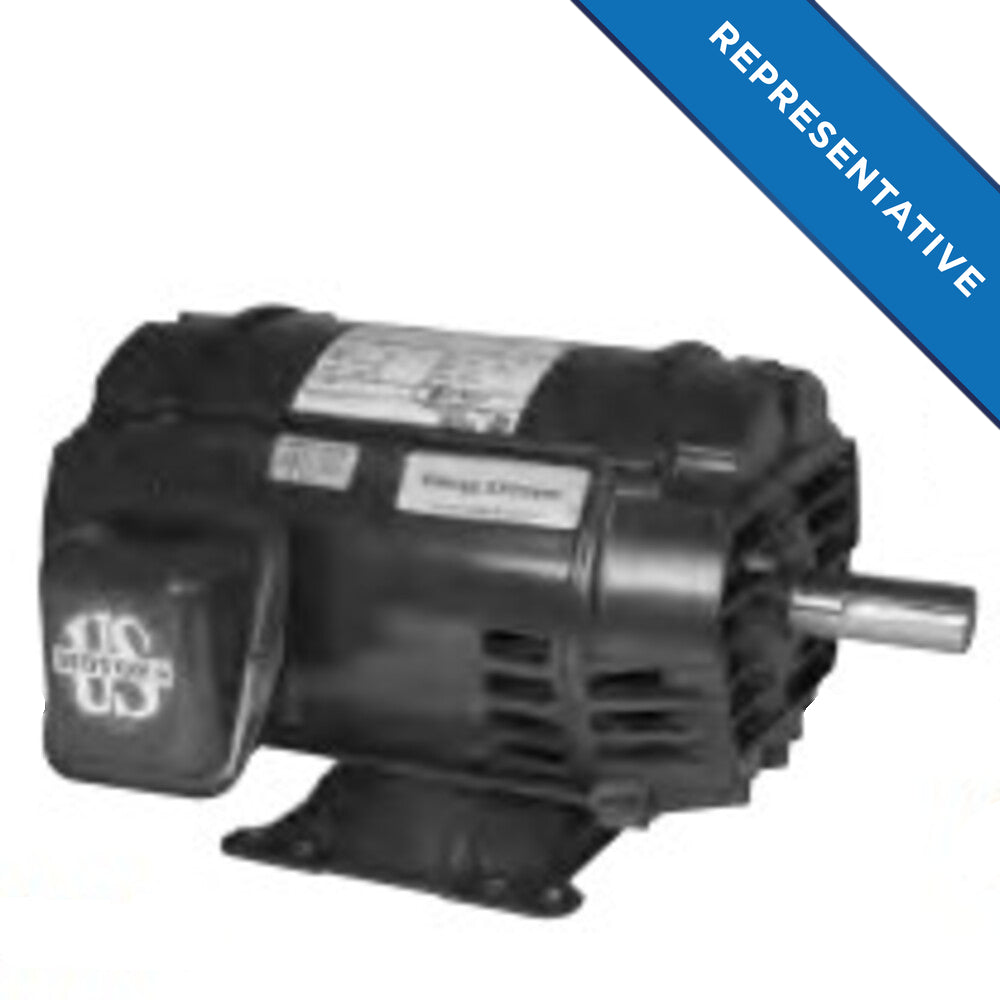

U.S. Motors D300P2F General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D300P2F is a general purpose three phase motor designed for various applications. It operates at three hundred horsepower and can reach speeds of one thousand eight hundred RPM. This motor is ideal for industrial settings where reliable performance is essential.

• Horsepower: 300
• Speed: 1800 RPM
• Frame: 447T, ODP Enclosure

Product Highlights

This motor supports continuous operation with excellent efficiency. It is suitable for various applications including pumps, fans, and compressors.

Product Information

Standard Information

• Power Supply: Three Phase
• Voltage Rating: 460 & 380

Technical Specifications

• Full Load Efficiency: 95.8%
• Full Load Amps: 328
• Service Factor: 1.15
• Frame Material: Cast Iron
• Mounting Type: Horizontal - Footed
• Enclosure Type: ODP - Open Drip Proof
• Duty Cycle: Continuous Duty
• C Dimension: 43.2 inches
