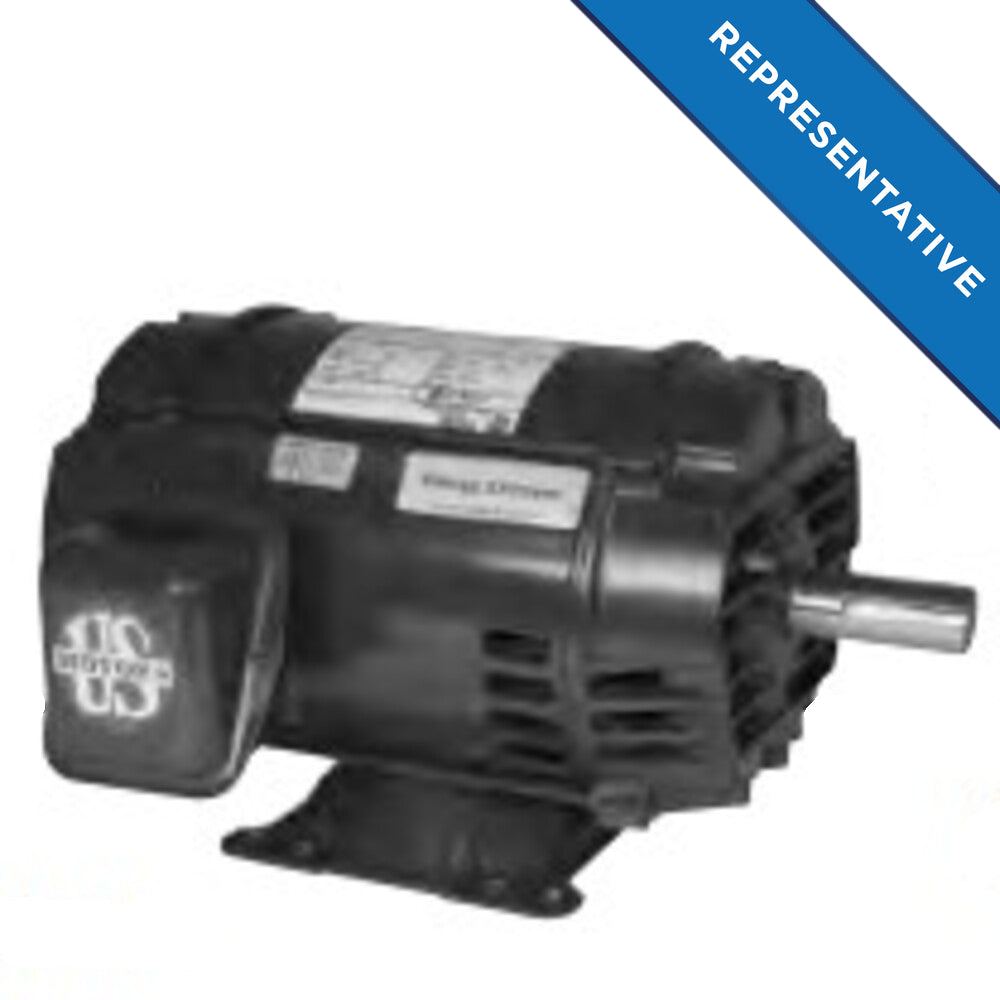

U.S. Motors D2P3H General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D2P3H is a three-phase ODP horizontal-footed motor. It offers a power rating of 2 horsepower with a speed of 1200 rpm, making it suitable for various general-purpose applications. This motor operates at a voltage rating of 200. It has a durable rolled steel frame and is designed for continuous duty.

• Power: 2 horsepower
• Speed: 1200 rpm
• Frame: 184T, Horizontal-Footed Mount

Product Highlights

This motor features an open drip-proof enclosure, ensuring reliable performance in diverse conditions. The robust design allows for effective cooling, which is ideal for applications that require longevity and efficiency.

Product Information

Standard Information

• Voltage Rating: 200
• Duty: Continuous

Technical Specifications

• Full Load Efficiency: 87.5%
• Poles: 6
• Service Factor: 1.15
• Weight: 60.0 LB
• Insulation Class: F
• Full Load Amps: 7.3
• C Dimension: 15 in
• Enclosure Designation: ODP - Open Drip Proof
