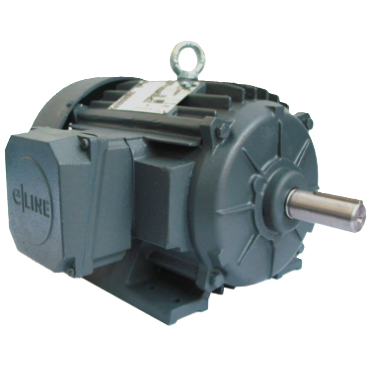

U.S. Motors D2P2G General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

U.S. Motors D2P2G is a general purpose motor designed for three-phase applications. This unit operates at two horsepower and has a stable speed of one thousand eight hundred RPM. It is suitable for various industrial tasks that require consistent performance.

• Powerful two horsepower rating
• Operates at one thousand eight hundred RPM
• Designed for continuous duty

Product Highlights

This motor is an ideal choice for HVAC systems, pumps, and general manufacturing applications. Its open drip proof (ODP) enclosure design allows it to function effectively in diverse environments while protecting internal components from moisture.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D2P2G

Technical Specifications

• Service Factor: 1.15
• Voltage Rating: 575 V
• RPM: 1800
• Hz: 60
• Frame: 145T
• Full Load Efficiency: 85.5%
• Full Load Amps: 2.2
• Insulation Class: F
• Drive End Bearing: 6311-2Z-J/C3
• Open End Bearing: 6211-2Z-J/C3
• Duty: Continuous Duty
