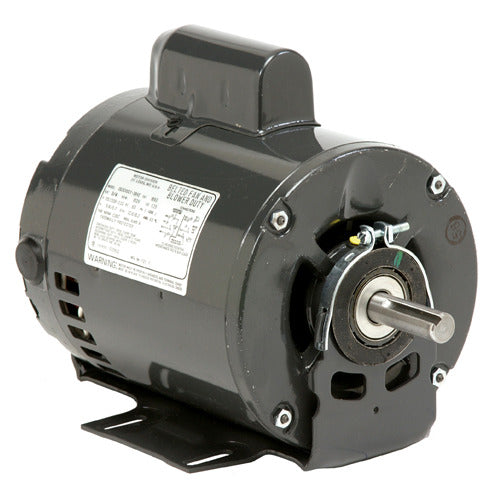

U.S. Motors D2CPA2PH9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D2CPA2PH9 is a general purpose single phase ODP resilient motor with a power rating of 2 horsepower. This motor operates at a speed of 1800 RPM and is suitable for various applications requiring reliable performance. The motor is designed for use in both residential and commercial environments, ensuring versatility and efficiency.

• Power rating of 2 hp for strong performance
• Voltage rating of 115/230 for operational flexibility
• Durable ODP enclosure for protection in various conditions

Product Highlights

This motor is built for continuous duty applications and offers efficient operation to reduce energy costs. Its 56H frame size allows for easy installation in a range of settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D2CPA2PH9

Technical Specifications

• Poles: 4
• Voltage Rating: 115/230
• RPM: 1800
• Full Load Amps: 17/8.5
• Frame: 56H
• Efficiency: 84.5%
• Mounting: Resilient
• Enclosure Designation: ODP - Open Drip Proof
