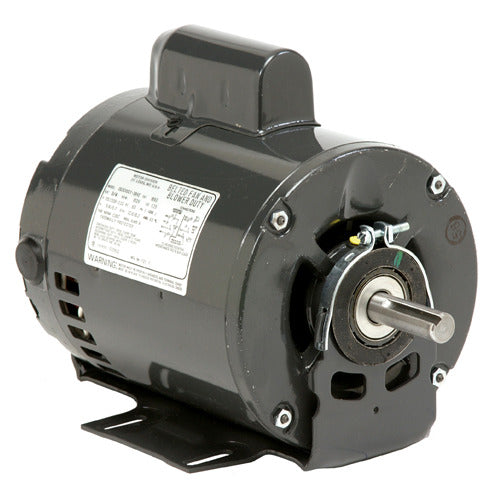

U.S. Motors D2CPA1PH9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D2CPA1PH9 is a general purpose single phase ODP motor designed for various applications. This motor provides efficient performance with a power rating of two horsepower and operates at a speed of three thousand six hundred RPM. It features a resilient mount and is built for reliability in continuous duty operations.

• Power: 2 hp
• Voltage Rating: 115/230
• Enclosure: ODP - Open Drip Proof

Product Highlights

This motor is suitable for general purpose applications. Its efficient design allows it to operate at a full load efficiency of eighty-two point nine percent.

Product Information

Standard Information

• Duty: Continuous Duty
• Phase: Single Phase

Technical Specifications

• Full Load RPM: 3600 RPM
• Full Load Amps: 17.3/8.7
• Frame: 56H
• Insulation: B
• Poles: 2
• Weight: 40.875 LB
• RPM: 3600
• Thermal Protection: Automatic Reset
• Capacity: 82.9%
