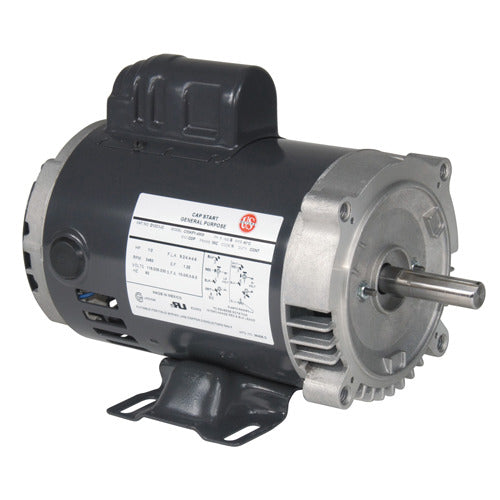

U.S. Motors D2CP2PHC General Purpose Motor 2 HP 1725 RPM

Product Description

The U.S. Motors D2CP2PHC is a versatile two horsepower motor designed for general purpose applications. This motor operates at 1725 RPM and is suitable for use in various industrial and commercial settings. It features a single phase operation and can work with both 115 and 230 voltage ratings.

• Suitable for continuous duty applications
• Open drip proof (ODP) enclosure for durability
• Standard C-Face and footed mounting options

Product Highlights

This motor is ideal for professionals needing reliable and efficient performance in HVAC, plumbing, or any machinery requiring solid motor support.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D2CP2PHC

Technical Specifications

• Mounting: C-Face/Base
• C Dimension: 13.3 inches
• Full Load Amps: 17/8.5
• Motor Application: General Purpose
• Insulation: B
• Hz: 60 Hz
• Poles: 4
• Phase: Single Phase
• Voltage Rating: 115/230
• RPM: 1800 RPM
• Enclosure: ODP
• Service Factor: 1.15
• Full Load Efficiency: 84.5%
• Frame: 56HC
• Duty: Continuous Duty
• Weight: 46.0 LB
