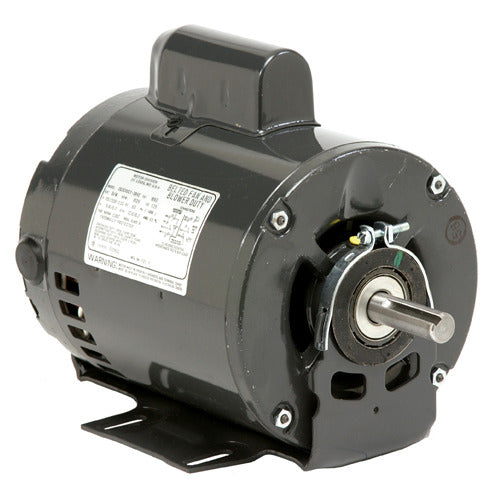

U.S. Motors D2CP2PH9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D2CP2PH9 is a general purpose single phase ODP resilient motor designed for a variety of applications. This robust motor operates at two horsepower and offers a full load efficiency of eighty-four point five percent, making it suitable for continuous duty tasks.

• Power: 2 HP
• Voltage: 115/230
• RPM: 1800

Product Highlights

Ideal for HVAC and various industrial applications, this motor features an open drip-proof (ODP) enclosure for protection against moisture. It is equipped with a resilient mounting system, ensuring reduced vibration and improved stability. The motor is designed to operate effectively in continuous duty applications.

Product Information

Standard Information

• Part Number: D2CP2PH9
• Brand: U.S. Motors

Technical Specifications

• C Dimension: 13.5 inches
• Mounting: Resilient
• Full Load RPM: 1725 RPM
• Phase: Single Phase
• Enclosure Designation: ODP - Open Drip Proof
• Motor Application: General Purpose
• Duty: Continuous Duty
• Full Load Efficiency: 84.5%
• Poles: 4
• Voltage Rating: 115/230
• Insulation: B
• Frame: 56H
• Service Factor: 1.15
• Full Load Amps: 17/8.5
• Weight: 46.0 LB
• UPC: 786382110482
