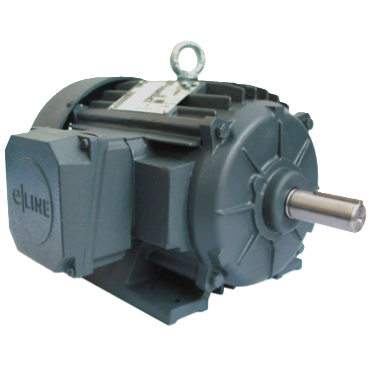

U.S. Motors D25P1G General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D25P1G is a three-phase general-purpose motor designed for horizontal and footed mounting applications. This motor operates at a power of twenty-five horsepower and a full load speed of three thousand six hundred RPM. With a voltage rating of five hundred seventy-five volts, it is suitable for various industrial and commercial applications.

• Application: General Purpose
• Mounting: Horizontal Footed
• Enclosure Type: Open Drip Proof (ODP)

Product Highlights

This motor is built for continuous duty and is designed with efficiency in mind. The robust construction ensures durability in demanding environments, making it a reliable choice for your machinery needs.

Product Information

Standard Information

• Motor Type: General Purpose
• Phase: Three Phase

Technical Specifications

• Voltage Rating: 575
• Frame: 256T
• Full Load Amps: 22.9
• Efficiency: 91.7%
• Service Factor: 1.15
• Continuous Duty
• Poles: 2
• Design Code: B
