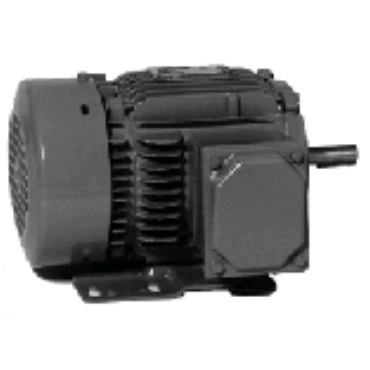

U.S. Motors D20V1B Inverter Duty Motor 20 HP 254T

Product Description

The U.S. Motors D20V1B is a powerful inverter duty motor with a rating of twenty horsepower. This motor operates at a speed of three thousand five hundred forty RPM and is designed for three-phase applications. It has a frame size of two hundred fifty-four T and an open drip-proof enclosure, making it suitable for various industrial environments.

• Heavy-duty, inverter grade motor with Class F insulation
• Compatible with a range of voltages: two hundred thirty or four hundred sixty
• Includes a three-year warranty on the inverter power

Product Highlights

This motor features double shielded and relubricatable bearings, which enhance durability and performance. The design includes rolled steel construction for frames from one hundred forty T to three hundred twenty T and cast iron for larger frames. The effective insulation system ensures reliable operation in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D20V1B

Technical Specifications

• Power: 20 HP
• Voltage: 230/460
• Frame Size: 254T
• RPM: 3540
• Overload Protection: None
• Material: Rolled Steel
• Amperage: 46/23.2
• Efficiency: 91%
• Insulation Class: F
• Bearings Type: Ball
• Service Factor: 1.15
