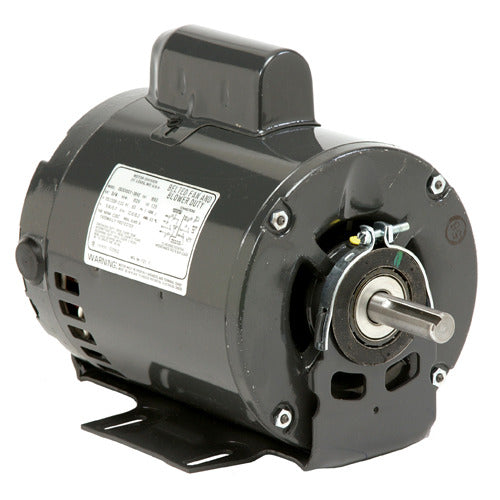

U.S. Motors D1CPA3PH9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D1CPA3PH9 is a general purpose single phase ODP resilient motor designed for a variety of applications. This motor operates at one horsepower and has a rotor speed of 1200 rpm, making it suitable for many commercial and industrial uses. The motor features an open drip proof (ODP) enclosure for protection and has a resilient mount for easy installation.

• Voltage rating: 115/230
• Full load amps: 8.9/4.6
• Frame: 56H

Product Highlights

This motor is designed to provide continuous duty service with an efficiency of 81.1%. It is built to last with durable materials, and the automatic reset thermal protection ensures safety during operation.

Product Information

Standard Information

• Motor Application: General Purpose
• Full Load Amps: 8.9/4.6

Technical Specifications

• Poles: 6
• Enclosure Designation: ODP - Open Drip Proof
• Voltage Rating: 115/230
• Full Load rpm: 1140 rpm
• Frame: 56H
• Duty: Continuous Duty
• RPM: 1200 rpm
• Phase: Single Phase
• Hz: 60 Hz
• Insulation: B
• Enclosure: ODP
• Full Load Efficiency: 81.1 %
• Mounting: Resilient
• Thermal Protection: Automatic Reset
• Weight: 45.0 LB
• EAN or UPC: 786382111298
