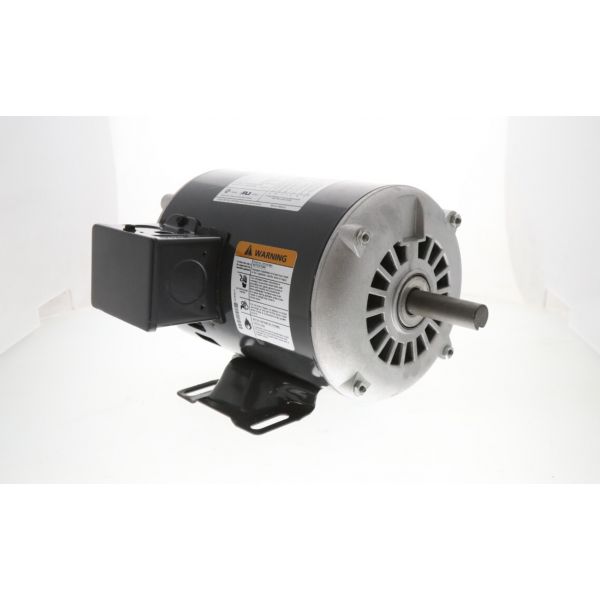

U.S. Motors D1P1A General Purpose Three Phase ODP Rigid Motor

Product Description

The U.S. Motors D1P1A is a three-phase electric motor designed for general purpose applications. It features a horsepower rating of one at a rotation speed of three thousand six hundred RPM. This motor operates effectively at a voltage rating of two hundred eight to four hundred sixty volts.

• Three-phase power configuration
• Open Drip Proof (ODP) enclosure
• Continuous duty operation

Product Highlights

This motor is suitable for various industrial uses, including HVAC systems, manufacturing, and material handling. The robust construction includes a rigid mount for stability and efficiency, making it ideal for demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D1P1A

Technical Specifications

• Voltage Rating: 208-230/460
• Enclosure Designation: ODP - Open Drip Proof
• Hz: 60
• Insulation: B
• Phase: Three Phase
• RPM: 3600
• Frame: 56
• Full Load Amps: 2.8-2.8/1.4
• Service Factor: 1.25
• Weight: 24.7 LB
