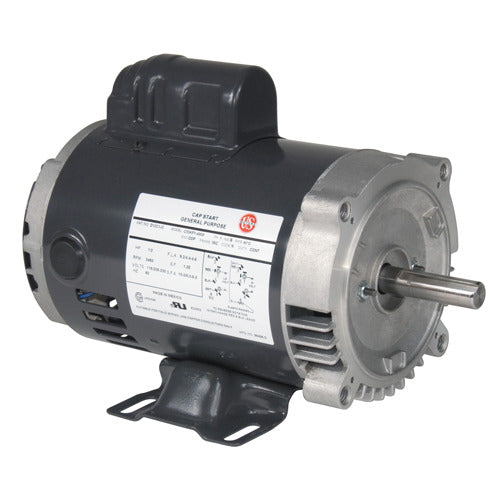

U.S. Motors D1CP2PHC General Purpose Single Phase ODP C-Face/Base Motor

Product Description

The U.S. Motors D1CP2PHC is a general purpose single phase motor designed for continuous duty applications. Rated at one horsepower and capable of operating at one thousand eight hundred rpm, this motor features a C-Face and base mount, making it versatile for various setups. It operates on either one hundred fifteen or two hundred thirty volts and is rated for sixty hertz.

• Continuous duty operation
• Suitable for a variety of applications
• Open drip proof enclosure designed for protection

Product Highlights

This motor delivers reliable performance suitable for different general purpose applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D1CP2PHC

Technical Specifications

• Motor Application: General Purpose
• Phase: Single
• Insulation: B
• Frame: 56HC
• Full Load Amps: 8.8/4.4
• Voltage Rating: 115/230
• RPM: 1800
• Enclosure Designation: ODP - Open Drip Proof
• Full Load Efficiency: 82.6%
• Poles: 4
• Weight: 31.43 LB
• EAN or UPC: 786382112936
