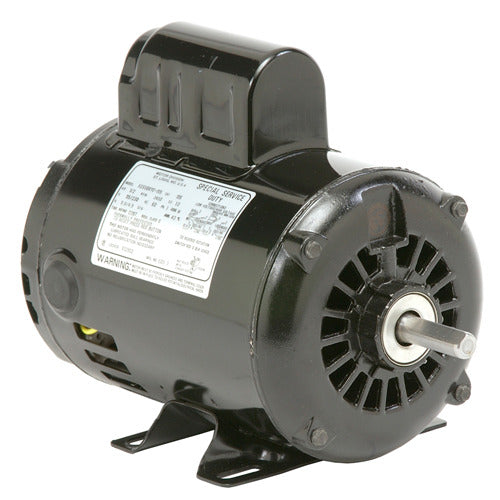

U.S. Motors D1CM2J14 General Purpose Single Phase ODP Rigid Base Motor

Product Description

The U.S. Motors D1CM2J14 is a general-purpose single-phase motor designed for a variety of applications. This motor operates at one horse power with a speed of one thousand eight hundred RPM. It is suitable for use in diverse environments that require reliable and efficient performance. The rigid base mount allows for easy installation and stability during operation.

• Power: 1 HP, Single Phase with 4 poles
• RPM: 1800 with continuous duty capability
• Enclosure: Open Drip Proof (ODP) for protection against moisture

Product Highlights

This motor is ideal for applications where durability and efficiency are critical. The manual reset thermal protection prevents overheating, making it reliable during prolonged usage.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D1CM2J14

Technical Specifications

• Power Rating: 1 HP
• Voltage Rating: 115/208-230 V
• Frequency: 60 Hz
• Full Load Amps: 14.8/7.5-7.3
• Frame Size: 143T
• Service Factor: 1.15
• Thermal Protection: Manual Reset
• Enclosure Designation: ODP - Open Drip Proof
• Weight: 35.0 lb
• C Dimension: 12.2 inches
