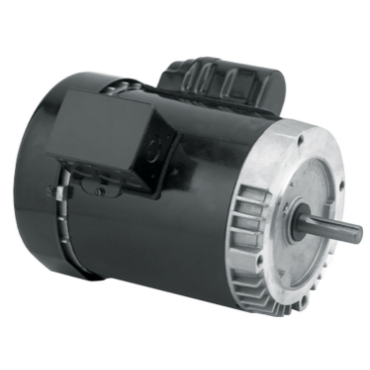

U.S. Motors D1C2J14C General Purpose Single Phase ODP C-Face/Base Motor

Product Description

The U.S. Motors D1C2J14C is a general purpose single phase motor designed for various applications. This motor features an ODP enclosure and has a C-Face/Base mounting style.

• Rated at 1 horsepower
• Runs at 1800 RPM
• Operates at 60 Hz with a dual voltage rating of 115/208-230

Product Highlights

This motor is suitable for use in various industrial and commercial settings where efficiency and reliability are required.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D1C2J14C

Technical Specifications

• Mounting: C-Face with Base
• Motor Application: General Purpose
• Duty: Continuous Duty
• Full Load Amps: 14.8/7.5-7.3
• Hz: 60
• HP: 1
• Frame: 143TC, 143
• RPM: 1800
• Phase: Single Phase
• Enclosure Designation: ODP - Open Drip Proof
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Service Factor: 1.15
• Weight: 40.0 lb
