U.S. Motors D1C2J14 General Purpose Single Phase ODP Rigid Base Motor

Product Description

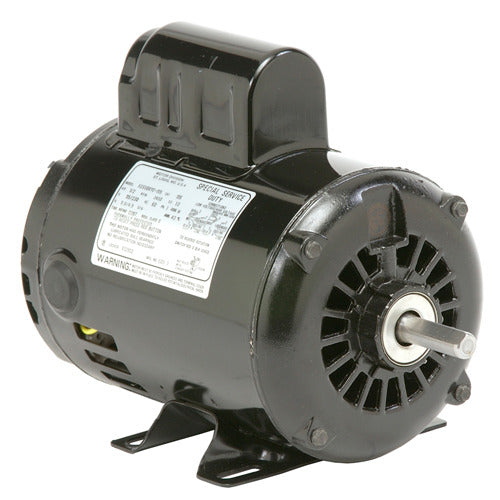

The U.S. Motors D1C2J14 is a general purpose single phase ODP rigid base motor designed for various applications. This motor has a power rating of one hp and operates at a speed of one thousand eight hundred rpm. With a durable construction and an open drip-proof (ODP) enclosure, it is suitable for different environments.

• Power: 1 hp
• Enclosure type: ODP
• Mounting type: Rigid base

Product Highlights

This motor is reliable for continuous duty applications. It features a service factor of 1.15, which enhances its performance under load. The voltage rating of 115/208-230 volts makes it versatile for multiple electrical setups.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 101507787

Technical Specifications

• HP: 1
• RPM: 1800
• Frame: 143T
• Enclosure: ODP
• Phase: Single Phase
• Voltage Rating: 115/208-230
• Mounting: Rigid Base
• Full Load Amps: 14.8/7.5-7.3
• Design: L
• Insulation Class: B
• Efficiency: 70%
• Full Load RPM: 1725
• Poles: 4
• Weight: 32.0 LB
