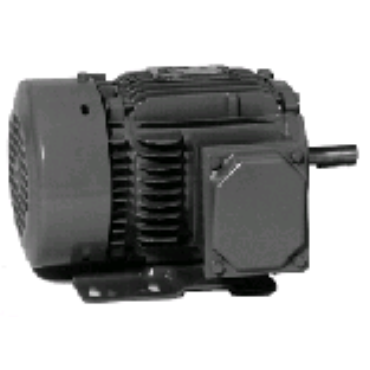

U.S. Motors D15V1B Inverter Vector Duty Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D15V1B is an inverter vector duty motor designed for general purpose applications. This three-phase motor operates efficiently with a voltage rating of two hundred thirty to four hundred sixty volts. It features a horizontal footed design and is built to last in challenging environments.

• General purpose inverter vector duty application
• Horizontal mounting for versatile installation
• High efficiency with an Epact rating

Product Highlights

This motor is rated for continuous duty and features an open drip proof (ODP) enclosure. With a robust frame size of two hundred fifteen T and a nominal full-load efficiency of eighty-nine point five percent, it meets the needs of demanding applications.

Product Information

Standard Information

• Manufacturer: U.S. Motors
• MPN: D15V1B

Technical Specifications

• Motor Application: General Purpose, Inverter Vector Duty
• Mounting: Horizontal Mount, Horizontal - Footed
• Efficiency Group: Epact Efficient
• Voltage Rating: 230/460
• Enclosure: ODP
• Poles: 2
• Full Load Amps: 36/18
• Weight: 100.0 LB
