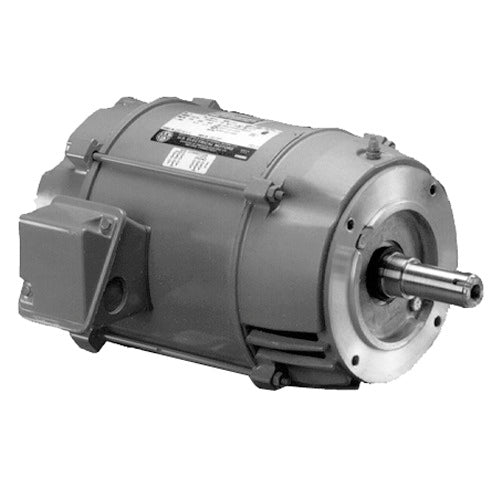

U.S. Motors D14P2ACR General Purpose Three Phase ODP C-Face Motor

Product Description

The U.S. Motors D14P2ACR is a general purpose three phase ODP C-face motor. It operates at one quarter horsepower with a speed of eighteen hundred rpm and is designed for continuous duty applications.

• Voltage rating: 208-230/460
• Enclosure type: Open Drip Proof (ODP)
• Frame size: 56C

Product Highlights

This motor is ideal for various general purpose applications where reliable performance is necessary. Its three-phase design ensures efficient operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D14P2ACR

Technical Specifications

• Poles: 4
• Hz: 60
• Full Load Amps: 1.1-1.2/0.6
• Frame: 56C
• Mounting: C-Face
• Voltage Rating: 208-230/460
• Full Load Efficiency: 69.5%
• Full Load rpm: 1725
• Enclosure: ODP
• Insulation: B
• Phase: Three Phase
• Service Factor: 1.35
• C Dimension: 10.8 in
• Motor Application: General Purpose
• Duty: Continuous Duty
• Weight: 26.0 lb
• EAN or UPC: 786382110314
