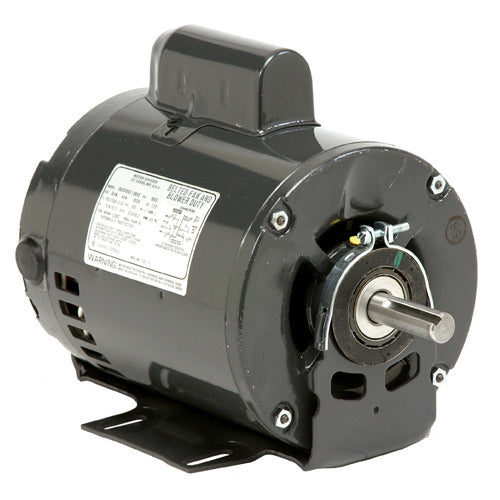

U.S. Motors D14CPA2P49 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D14CPA2P49 is a general purpose, single phase ODP cradle motor designed for applications requiring reliable performance. This motor has a power rating of one-quarter horsepower and operates at a speed of 1800 RPM. It is suitable for continuous duty applications and features an open drip-proof enclosure, which helps the motor operate in various environments with limited exposure to moisture.

• Capable of operating on dual voltage, 115 or 230 volts.
• Enclosure type: Open Drip Proof (ODP).
• Mounting type: Cradle mount for easy installation.

Product Highlights

This motor offers effective operation in standard general service applications, ensuring efficient and lasting performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D14CPA2P49

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Thermal Protection: Automatic Reset
• Insulation: Class B
• Mounting: Cradle
• Poles: 4
• Frequency: 60 Hz
• Motor Application: General Purpose
• Frame Size: 48
• Full Load Efficiency: 68.5%
• RPM: 1800
• Voltage Rating: 115/230
• Duty Cycle: Continuous Duty
• Phase: Single Phase
• Full Load Amps: 3.1/1.5
• Weight: 17.91 LB
• EAN or UPC: 786382114961
