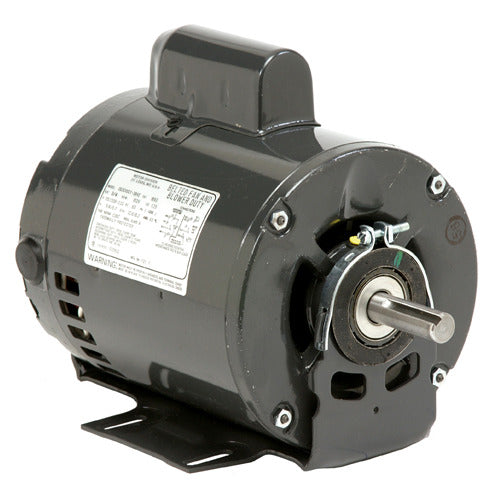

U.S. Motors D14CP2P9 General Purpose Single Phase ODP Motor

Product Description

The U.S. Motors D14CP2P9 is a general purpose single phase open drip proof motor. It operates at one-fourth horsepower and has a speed of one thousand eight hundred RPM. This motor is suitable for various applications requiring continuous operation.

• Single phase, capacitor start/capacitor run design
• Rated for a voltage of one hundred fifteen to two hundred thirty volts
• Lightweight design at fourteen point fourteen pounds

Product Highlights

This motor features efficient performance with an efficiency rating of sixty-eight point five percent, making it ideal for general purpose applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Model Number: D14CP2P9

Technical Specifications

• Poles: 4
• Duty: Continuous Duty
• C Dimension: 10.3 inches
• Enclosure Designation: ODP - Open Drip Proof
• Full Load Amps: 3.1/1.5
• Full Load Efficiency: 68.5%
• Service Factor: 1.35
• Phase: Single Phase
• Frame: 56
• RPM: 1800
• Hz: 60
• Motor Application: General Purpose
• Full Load RPM: 1725
• Insulation: B
• Voltage Rating: 115/230
• Weight: 14.14 pounds
• EAN or UPC: 786382111571
