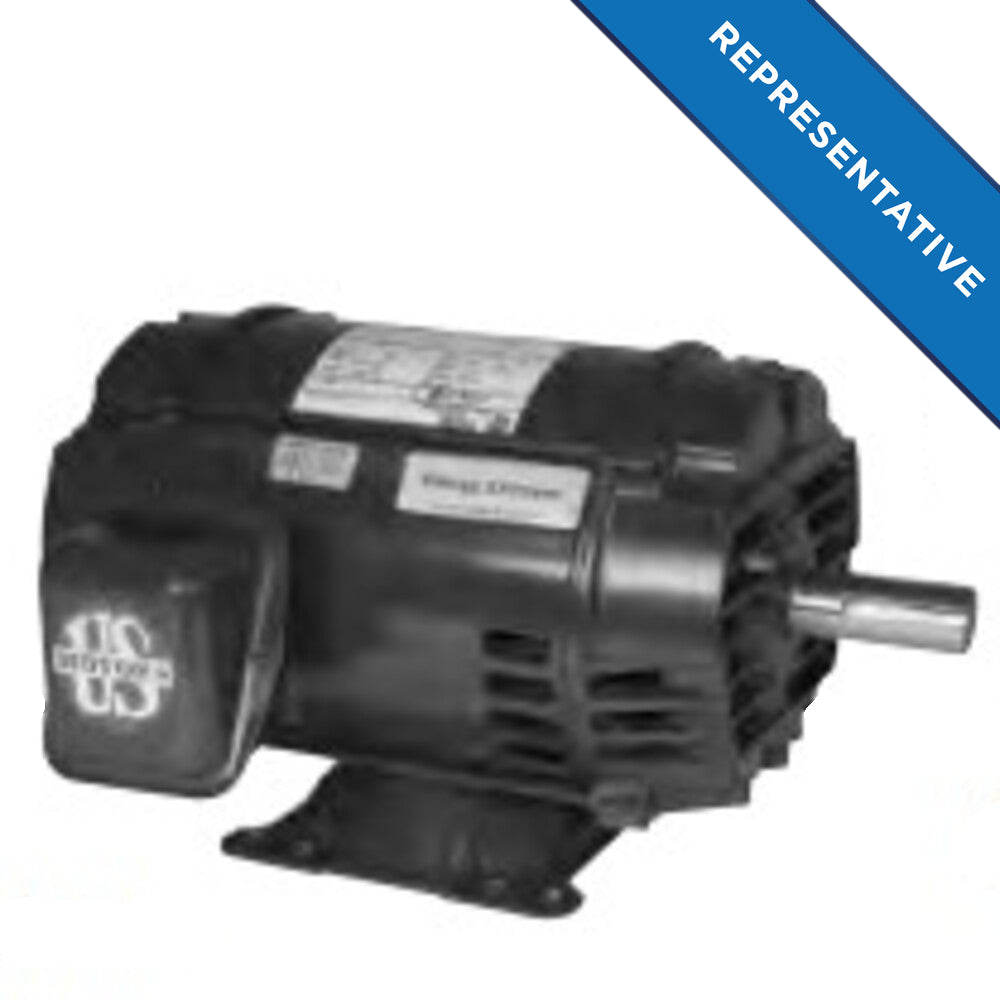

U.S. Motors D13P2AH9 General Purpose Three Phase ODP Resilient Motor

Product Description

The U.S. Motors D13P2AH9 is a general-purpose three-phase motor designed for various applications. This motor operates at a power of one-third horsepower and has a speed of one thousand eight hundred RPM. It features a resilient mount for stability and an open drip-proof enclosure suitable for demanding environments.

• Voltage Rating: 208-230/460
• Continuous Duty Motor
• Frame Size: 56H

Product Highlights

This motor is suitable for continuous operation in a variety of settings, making it ideal for HVAC systems, industrial machinery, and other three-phase applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13P2AH9

Technical Specifications

• Voltage Rating: 208-230/460
• Phase: Three Phase
• Duty: Continuous Duty
• Enclosure: ODP
• Poles: 4
• RPM: 1800
• Hz: 60
• Insulation: B
• Frame: 56H
• Motor Application: General Purpose
• Mounting: Resilient
• Full Load Efficiency: 73.4%
• Full Load Amps: 1.4-1.4/0.7
• Weight: 26.0 LB
