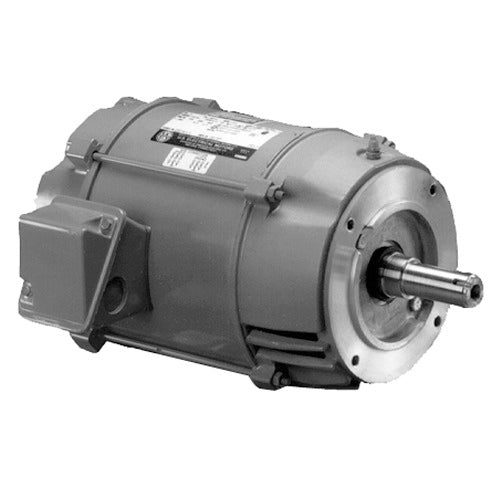

U.S. Motors D13P2ACR General Purpose Three Phase ODP C-Face Motor

Product Description

The U.S. Motors D13P2ACR is a general-purpose three-phase motor designed for various applications. This motor operates at one third horsepower and provides reliable performance. It operates at a speed of one thousand eight hundred RPM and supports a voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts.

• Three-phase operation for enhanced performance
• Open Drip Proof (ODP) design for improved durability
• Standard C-face mounting for easy installation

Product Highlights

This motor is suitable for continuous duty applications. Its four-pole design ensures efficient operation across various environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13P2ACR

Technical Specifications

• Frame: 56C
• Voltage Rating: 208-230/460
• Poles: 4
• Mounting: C-Face
• Service Factor: 1.35
• RPM: 1800 rpm
• Enclosure: ODP
• Insulation: B
• Full Load Efficiency: 73.4%
• Duty: Continuous Duty
• Motor Application: General Purpose
• C Dimension: 11.3 inches
• Full Load Amps: 1.4-1.4/0.7
• Hz: 60 Hz
• Weight: 26.0 lbs
• EAN or UPC: 786382111458
