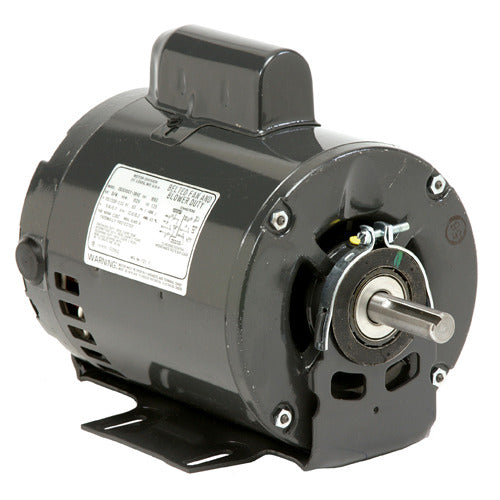

U.S. Motors D13CPA3P9 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D13CPA3P9 is a general-purpose single-phase ODP cradle motor. This motor is designed for various applications requiring reliable performance. It features a power rating of one-third horsepower and operates at a speed of one thousand two hundred RPM.

• Power Rating: 1/3 hp
• Voltage Rating: 115/230 V
• Design: Open Drip Proof (ODP)

Product Highlights

This motor is ideal for continuous duty and is suitable for general-purpose applications. It features automatic reset thermal protection and a cradle-mounted design for ease of installation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D13CPA3P9

Technical Specifications

• Frame Size: 56H
• Efficiency: 66.6%
• Insulation Class: B
• Service Factor: 1.35
• Full Load Amps: 4.4/2.3
• Full Load RPM: 1140 RPM
• C Dimension: 11.3 inches
• Poles: 6
