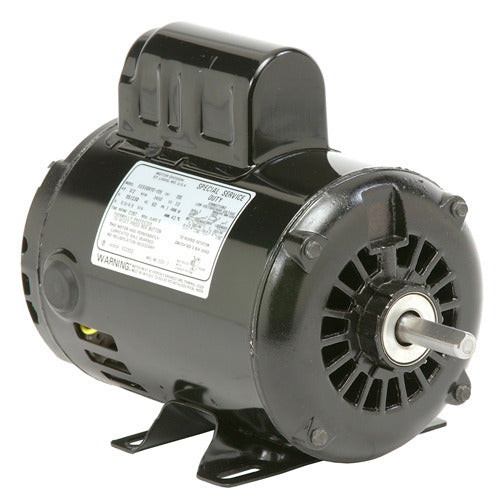

U.S. Motors D13CPA2Z4 General Purpose Single Phase ODP Rigid Base Motor

Product Description

The U.S. Motors D13CPA2Z4 is a general purpose single phase ODP rigid base motor, ideal for various applications in HVAC and industrial environments. This motor operates at one-third horsepower with a speed of 1800 RPM. The voltage rating supports both 115/230 and 110/220 volt configurations, making it adaptable for different setups.

• General Purpose Motor Application
• Rigid Base Mount Design
• Automatic Reset Thermal Protection

Product Highlights

This motor is designed for continuous duty operations and is suitable for various general purpose applications. It features an Open Drip Proof (ODP) enclosure that offers protection against moisture and dust, enhancing durability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13CPA2Z4

Technical Specifications

• Enclosure: ODP
• Voltage Rating: 115/230 & 110/220
• Thermal Protection: Automatic Reset
• Motor Application: General Purpose
• Mounting: Rigid Base
• C Dimension: 9.1 inches
• Phase: Single Phase
• Service Factor: 1.35
• Frame: 48
• Insulation: Class B
• Full Load Amps: 3.8/1.9
• Full Load RPM: 1725 RPM, 1425 RPM
• Efficiency: 72.4%
• Poles: 4
• Weight: 17.45 LB
• EAN or UPC: 786382111007
