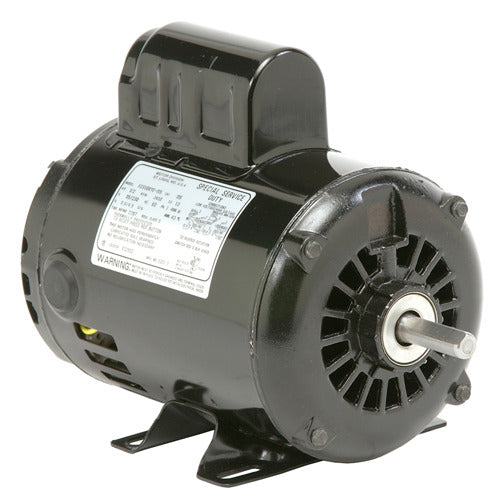

U.S. Motors D13CP2P General Purpose Single Phase ODP Rigid Base Motor

Product Description

The U.S. Motors D13CP2P is a general-purpose single-phase motor. This motor is designed for various applications requiring reliable performance and efficiency.

• 1/3 horsepower
• Features rigid base mounting
• Operating at 1800 rpm with ODP enclosure

Product Highlights

This motor is suitable for HVAC systems, fans, and pumps, ensuring optimal operation across multiple environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 112855269

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Insulation Class: B
• Frequency: 50/60 Hz
• Full Load RPM: 1425 rpm, 1725 rpm
• Voltage Rating: 115/230 & 110/220
• Motor Application: General Purpose
• C Dimension: 9.87 inches
• Mounting Type: Rigid Base
• Duty Type: Continuous Duty
• Poles: 4
• Full Load Efficiency: 72.4%
• Service Factor: 1.35
• Full Load Amps: 3.9/1.9 & 4.8/2.5
• Weight: 16.24 pounds
• Frame Size: 56
