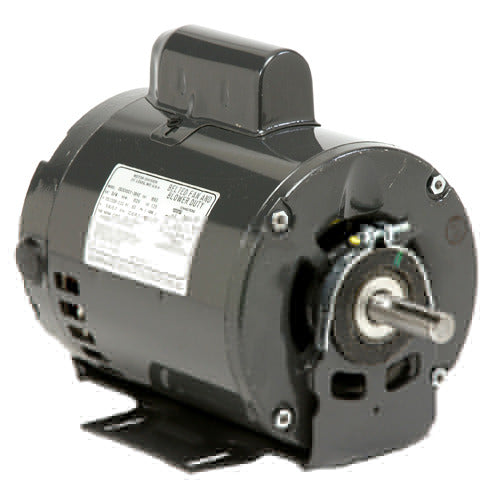

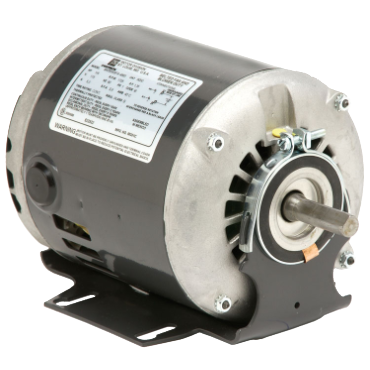

U.S. Motors D13CA1J9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D13CA1J9 is a general purpose single phase ODP resilient motor designed for various applications. It features a robust one-third horsepower power rating and operates at a speed of three thousand six hundred RPM. The motor operates efficiently at a voltage of one hundred fifteen to two hundred thirty volts and is ideal for environments requiring an open drip-proof enclosure.

• Horsepower: 1/3 hp
• Continuous Duty Rating
• Voltage: 115/208-230

Product Highlights

This motor is built for durability and reliability in general-purpose applications. It features automatic thermal protection and a resilient mounting base for stable operation.

Product Information

Standard Information

• Brand: U.S. Motors
• Type: General Purpose Motor

Technical Specifications

• Phase: Single Phase
• Enclosure: ODP - Open Drip Proof
• RPM: 3600 rpm
• Voltage Rating: 115/208-230
• Motor Application: General Purpose
• Hz: 60 Hz
• HP: 1/3
• Full Load rpm: 3450 rpm
• C Dimension: 10.3 inches
• Mounting: Resilient Base
• Full Load Amps: 6/2.9-3
• Insulation: B
• Thermal Protection: Automatic Reset
• Service Factor: 1.35
• Frame: 56
• Poles: 2
• Weight: 19.0 LB
• EAN or UPC: 786382069148
