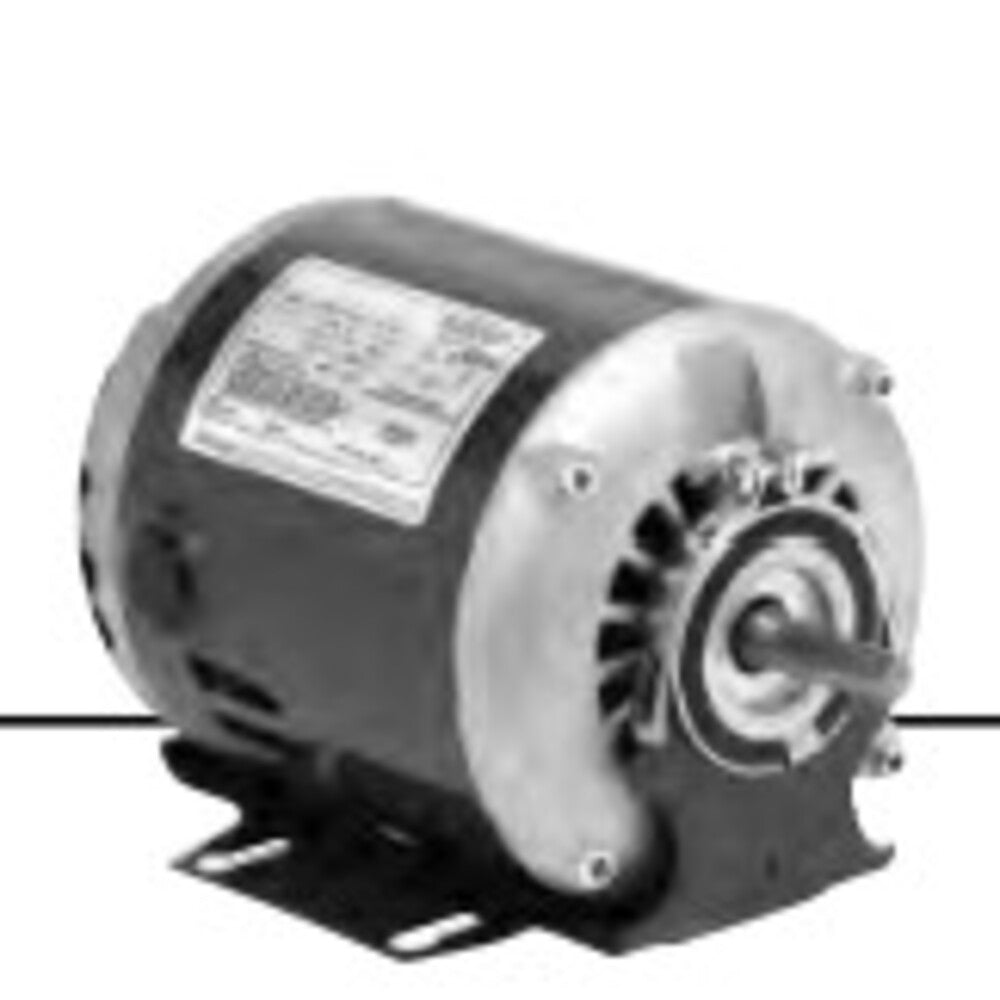

U.S. Motors D13BA2N4A General Purpose Single Phase ODP Rigid Motor

Product Description

The U.S. Motors D13BA2N4A is a general purpose single phase ODP rigid motor designed for various applications. Operating at one third horsepower and a speed of 1800 rpm, this motor is efficient and reliable for everyday use.

• Rated at 1/3 HP with a voltage of 115
• Designed for continuous duty operation
• Rigid base mounting suitable for a variety of setups

Product Highlights

This motor combines robust construction with excellent thermal protection, ensuring it performs well in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 101998759

Technical Specifications

• Mounting: Rigid Base
• Insulation: B
• Enclosure Designation: ODP - Open Drip Proof
• Frequency: 60 Hz
• Voltage Rating: 115
• Horsepower: 1/3
• Phase: Single Phase
• RPM: 1800
• Poles: 4
• Frame: 48
• Thermal Protection: Automatic Reset
• C Dimension: 9.4 inches
• Full Load Efficiency: 62%
• Service Factor: 1.35
• Duty: Continuous Duty
• Full Load Amps: 6
• Bearings: Sleeve
