Product Description

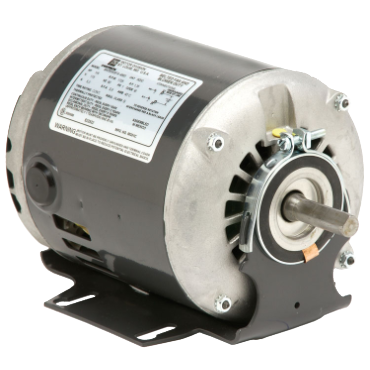

The U.S. Motors D13B3P9 is a general-purpose single-phase ODP resilient motor designed for various applications. This motor operates at one-third horsepower with a speed of twelve hundred RPM. It is built for continuous duty with a resilient mounting base, making it suitable for various industrial uses.
- Motor Type: AC Motor
- Voltage Rating: 115/230
- Enclosure: Open Drip Proof (ODP)
Product Highlights
The motor is ideal for applications requiring a resilient base and reliable operation in moderate environments.
Product Information
Standard Information
-
Mounting: Resilient Base
-
Motor Application: General Purpose, Split Phase
Technical Specifications
-
Full Load Amps: 7.5/3.8
-
HP: 1/3
-
Poles: 6
-
Frame: 56
-
Weight: 25.0 LB
-
Service Factor: 1.35
-
Insulation: B
-
Duty: Continuous Duty
