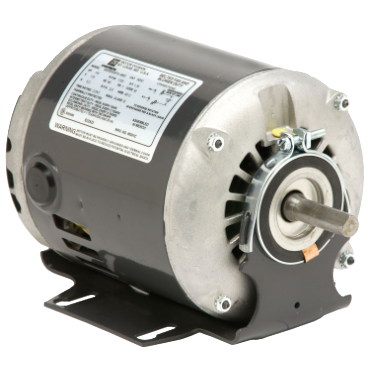

U.S. Motors D13B2N4Z9 General Purpose Single Phase ODP Cradle/Stud Motor

Product Description

U.S. Motors D13B2N4Z9 is a general-purpose single-phase motor suitable for various applications. This motor operates at one-third horsepower and has a speed of one thousand eight hundred RPM. Designed for reliable performance, it is ideal for both industrial and commercial settings.

• Rated full load of seven amps
• Voltage rating of one hundred fifteen volts
• Open drip-proof design for enhanced durability

Product Highlights

This single-phase motor is built for longevity and efficiency. It features a cradle/stud mounting style and a 48Z frame size, allowing for straightforward installation in various setups.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13B2N4Z9

Technical Specifications

• Full Load RPM: 1725 RPM
• Hz: 60 Hz
• Poles: 4
• C Dimension: 9.2 inches
• Enclosure Designation: ODP - Open Drip Proof
• Duty: Continuous Duty
• Full Load Amps: 7
• Frame: 48, 48Z
• Service Factor: 1.35
• Motor Application: General Purpose, Split Phase
• Voltage Rating: 115
• Weight: 16.0 LB
• Insulation: B
