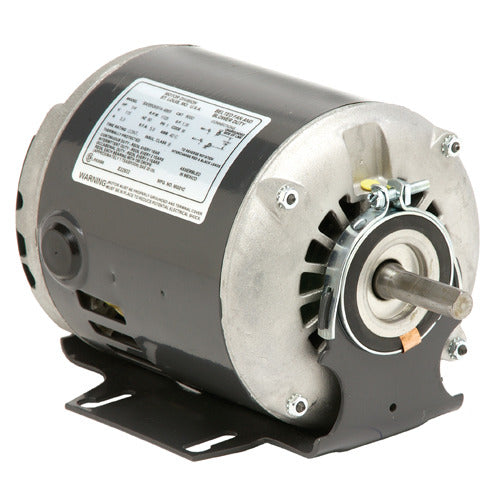

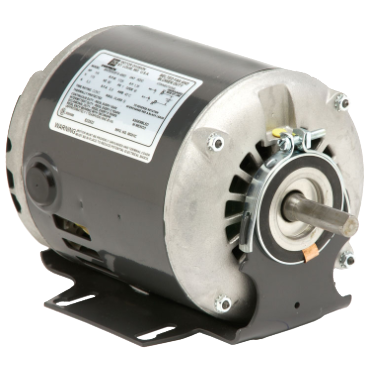

U.S. Motors D13B2K4A9 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D13B2K4A9 is a reliable general-purpose single-phase motor designed for various industrial applications. This motor is rated at one-third horsepower and operates efficiently at one thousand eight hundred rpm. The ODP (Open Drip Proof) enclosure provides protection from moisture and dust, ensuring durability and longevity.

• Voltage rating of two hundred thirty volts
• Efficient performance with a full load efficiency of sixty-one point five percent
• Cradle mount design for easy installation

Product Highlights

Ideal for HVAC, pumps, and general industrial tasks, this versatile motor offers dependable service in various settings.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D13B2K4A9

Technical Specifications

• Horsepower: 1/3
• Enclosure Designation: ODP - Open Drip Proof
• C Dimension: 9.38 inches
• Motor Application: General Purpose, Split Phase
• RPM: 1800
• Insulation: Class B
• Voltage Rating: 230 volts
• Frame: 48
• Phase: Single Phase
• Drive End Bearing: Ball
• Open End Bearing: Ball
• Full Load Efficiency: 61.5%
• Duty: Continuous
