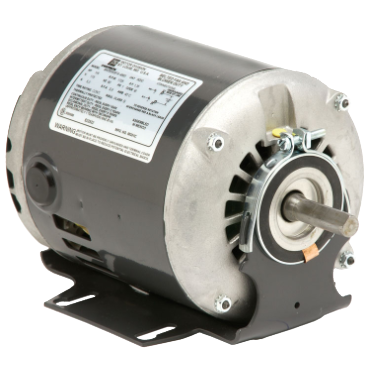

U.S. Motors D13ARM2N9 General Purpose Single Phase ODP Resilient Base Motor

Product Description

The U.S. Motors D13ARM2N9 is a general purpose single phase ODP resilient base motor designed for various applications including garage doors. This motor operates efficiently with a power rating of one third horsepower and runs at eighteen hundred RPM.

• Designed for general purpose applications
• Equipped with ODP (Open Drip Proof) enclosure
• Features durable construction with a resilient base mount

Product Highlights

Ideal for HVAC systems and industrial uses, this motor is compact and easy to install. It provides stable performance with a voltage rating of one hundred fifteen volts.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13ARM2N9

Technical Specifications

• Motor Application: General Purpose, Garage Door Opener
• Enclosure Designation: ODP - Open Drip Proof
• Drive End Bearing: BALL
• RPM: 1800
• HP: 1/3
• Frame: 56
• Voltage Rating: 115
• C Dimension: 10.8 inches
• Service Factor: 1
• Open End Bearing: BALL
• Poles: 4
• Mounting: Resilient Base
• Duty: Continuous Duty
• Insulation: B
• Full Load RPM: 1325 RPM, 1625 RPM
• Full Load Amps: 3.9/4.2
• Weight: 19.0 LB
• EAN or UPC: 786382056957
