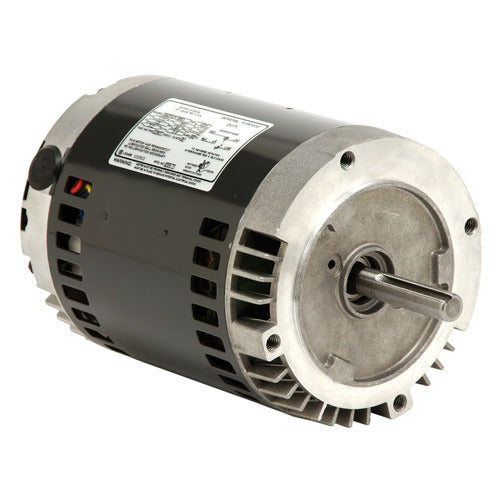

U.S. Motors D12CPA2PCR General Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors D12CPA2PCR is a general purpose single phase motor designed for various applications in the HVAC and industrial sectors. This motor operates at one-half horsepower and has a speed of one thousand eight hundred RPM. It features a C-face mounting design and is housed in an open drip proof enclosure.

• Powerful 1/2 horsepower motor
• Rated for 1800 RPM with continuous duty operation
• Designed for single-phase applications

Product Highlights

This motor is suitable for multiple tasks including HVAC systems, pumps, and compressors. The versatile voltage rating of one hundred fifteen to two hundred thirty volts makes it adaptable for different electrical systems.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D12CPA2PCR

Technical Specifications

• Phase: Single Phase
• Enclosure Designation: ODP - Open Drip Proof
• Full Load Efficiency: 76.2%
• Mounting: C-Face
• Frame: 56C
• RPM: 1800 rpm
• Voltage Rating: 115/230
• Weight: 22.0 LB
