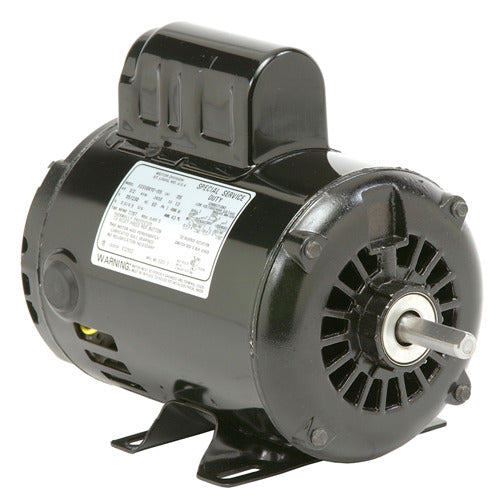

U.S. Motors D12CP3PH General Purpose Single Phase ODP Rigid Base Motor

Product Description

The U.S. Motors D12CP3PH is a general-purpose single-phase ODP rigid base motor designed for various applications. This motor has a power rating of one-half horsepower and operates at twelve hundred RPM, making it suitable for diverse tasks in HVAC systems and other industrial uses.

• Continuous Duty cycle for reliable performance.
• ODP design ensures it can be used in open environments.
• Versatile dual voltage rating of one hundred fifteen or two hundred thirty volts.

Product Highlights

This motor is ideal for applications requiring consistent and efficient operation. Its rigid base mount simplifies installation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D12CP3PH

Technical Specifications

• Phase: Single Phase
• Frame Size: 56H
• Duty: Continuous Duty
• Operating RPM: 1140
• Voltage Rating: 115/230
• Full Load Amps: 4.8/2.4
• Efficiency: 76.2%
• Enclosure Type: ODP - Open Drip Proof
• Weight: 32.0 LB
• C Dimension: 11.8 in
• Service Factor: 1.25
